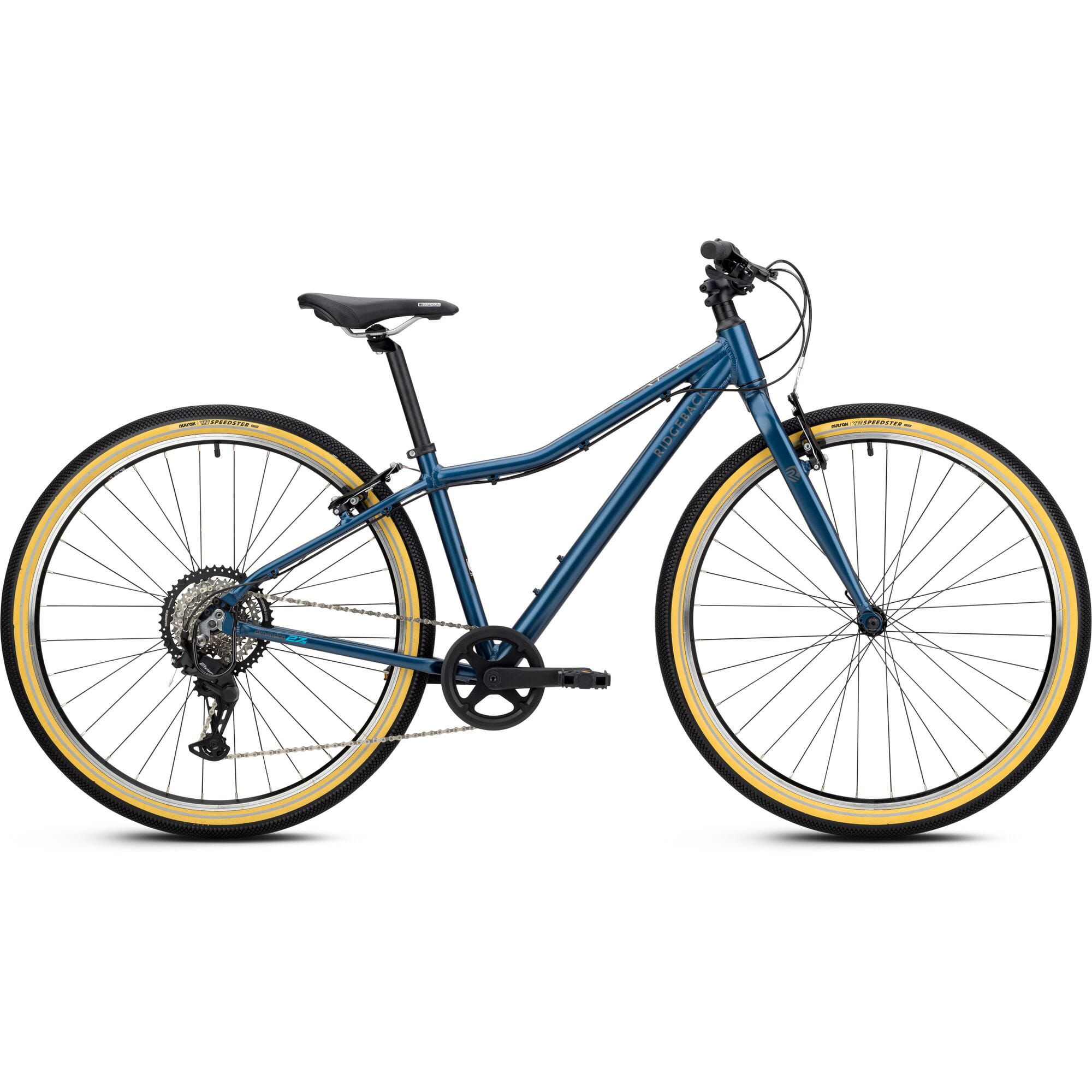

The Dimension 27.5 — Big Bike Performance, Unbeatable Value
The lightweight Dimension 27.5 is designed to be the ultimate mix of ability and value for young adult riders — and it delivers on every front! Suitable for riders aged 11 and upwards up to 162cm tall, the lightweight Dimension 27.5 bridges the gap between kids bike and full adult bike with style, confidence and a whole lot of fun.
Packed with many of the easy-ride features and fit details from our smaller bikes, the Dimension 27.5 takes things up a notch with full-size 27.5″ wheels and a wide-ratio Shimano Essa 8-speed gear system — because this really is a small adult's bike rather than a children's bike. Tackle every hill, track and back lane with ease, knowing the right gear is always just a click away.
Easy-Pedal Cranks — Our pedal cranks are ergonomically correct, proportional to the child's leg length. They also place the pedals closer to the bike's centre so that children can pedal as smoothly and naturally as possible.
Smaller Grips — Our handlebars and grips are narrower diameter so they fit small hands better, for confidence and control as well as better ability to reach the brakes safely.
Faster Tyres — Special edition Nutrak Speedsters with puncture resistance and reflective sidewalls roll comfortably and smoothly.
Lowered Frames — Our frames are lower where it counts, making it easier to get on and off and increasing clearance for greater confidence.
Supporting Accessory Range — For gifts, customisation or just getting co-ordinated!
Transferable warranty — Our lifetime frame and fork warranty and 2-year parts warranty is transferrable, supporting service and re-sale value. Because these bikes are made to last.
What is the Dimension 27.5 weight vs MX27.5 weight?
The MX27.5 weighs 11.3kg, compared to 10.7kg for the Dimension 27.5 — a weight saving of 0.6kg. Both are significantly lighter than budget steel-framed bikes of the same size, which typically weigh 12.5-13kg or more.
What are the parts differences between the Dimension 27.5 and the MX27.5?
The Dimension 27.5 has upgraded parts compared to the MX27.5 that save some weight, for example the aluminium forks, seat post head, chainring; and Shimano shifters with wider-range cassettes fitted to a Shimano rear freehub. The Nutrak Speedster tyres have a puncture-resistant belt and roll a little faster.
Dimension 27.5
Age Range 11 upwards Height Range 144cm to 162cm Inside Leg Range 69cm to 77cm Frame Butted 6061-T6 heat-treated aluminium Fork 6061-T6 heat-treated aluminium Bars 19.0mm OD grip area, 640mm W, 40mm rise, 10 degrees sweep Grips 19.0mm ID Velo grips, locking collar, Kraton rubber Stem 40mm extension, 10 deg rise, 25.4mm clamp Saddle Madison, soft PU foam padding, 258L x 137W Seat Post 27.2 x 350mm, all aluminium Headset Upper- ZS44/28.6 Lower ZS44/30 Tyres Nutrak by Vee - Speedster 27.5" x 1.95", reflective strip and flat-resistant belt, natural colour sidewall Rims Aluminium, double wall, machined sidewall with wear indicators, 32H F+R, Car-type valve Front Hub Aluminium, M6 bolted axle Rear Hub Shimano FH-N300 freehub, nutted axle Shifters Shimano SL-M315 trigger shifter, Jagwire LEX-SL lubricated cable housing Rear Mech Shimano Essa RD-U2000-8 SG w/ protective bash guard Cassette Shimano CS-HG400 cassette, 8 speed, 11-45T wide range Chain KMC, silver/grey finish Cranks Forged aluminium, low Q-factor design, 140mm length Chainring 36T, aluminium, double chain retention discs Bottom Bracket Thun Germany, sealed bearings, CrMo 119mm axle Pedals Nylon resin compact pedals, ball-bearings Brake Levers Promax BL367-AL, reach adjustable, aluminium body Brakes Aluminium V-brake, adjustable linear spring, Jagwire LEX-SL lubricated cable housing
